3000m Long Distance 808nm Infrared Laser Illuminator Module

3000m mtunda wautali 808nm infrared laser akuwunika


> Folceuet Auto - Kuchepetsa, machesi anzeru, otentha - kutha
> - 35 ℃ kutentha kochepa kuzizira kuyambira
> Fiber yolumikizira m'mphepete mwa laser (eel)
> Zolemba zophatikizika ndi kamera yowoneka ya Sacegood
> Chithunzi chodziwikiratu ndi malire owoneka



    Kutsitsi

    Tsatanetsatane wazogulitsa

    M'mbali

    Mtundu

    SG -IR808 - 3kl

    AmphamvuKutalika≥3000m
    MmaloZitsambaEEl (m'mphepete)
    Pukhuta808 ±3nm
    Mphamvu<75W
    Mphamvu yowala≥20w
    Lmtengo wa Arser AsikiraKutali kwambiri 0.3 °, mtunda wogwira ntchito> 3000m, mtengo wa mitengo<φ16m
    Pafupi ndi ngodya35°, Kutali kwaulere> 10m
    Kuyambitsa Nthawi10s
    Cmoder modeUART_TTL, Rs - 485, buku
    Mawonekedwe olumikiziranaRs - 485, TTL232, ulamuliro wamanja
    Protacol yolumikiziranaPelco - D (9600bps)
    Njira yogwirira ntchitoContinsies
    Moyo Wautumiki20000h
    MphamvuDC24V ± 10%, 2.2a ± 0.3a
    KuyendetsaKutentha- 35 ° C~+ 55 ° C
    SchikhadeTeklamu- 40 ° C~+ 85 ° C

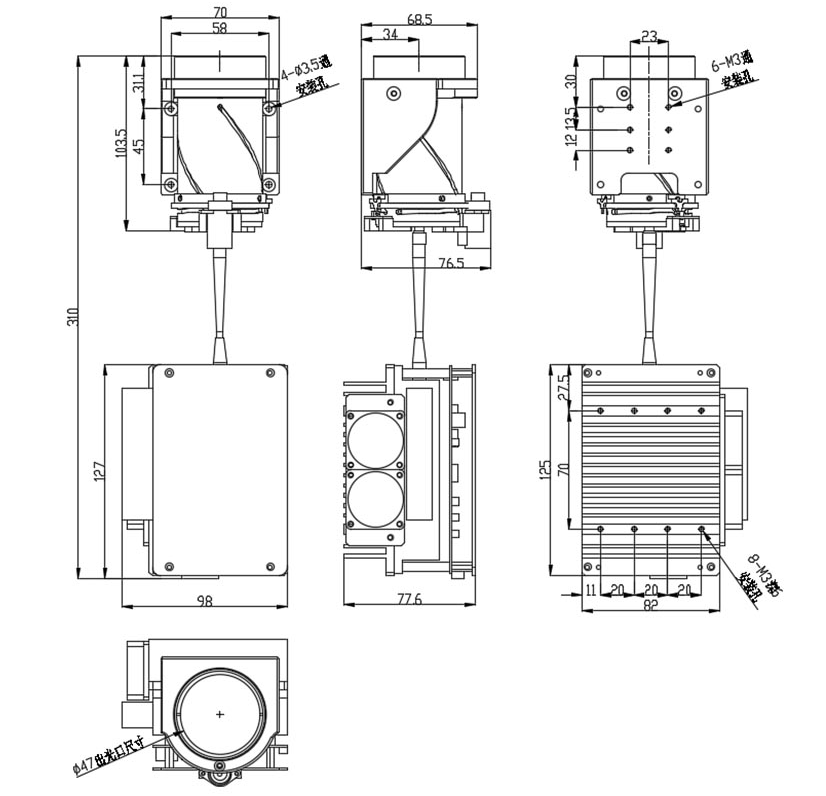

    M'mbali310mm×98mm×78mm
    Kulemera1.7kg
