2MP 30X HDTVI, HDCVI, Ahd, CVBB 4 mu gawo limodzi lotulutsa
|
Mtundu |
SG - Zcm2030A |
|
|
Matenda |
Chithunzi |
1 / 2.8 "sony IMX307 CMOS |
|
Pixel |
Pafupifupi. 2.13 megapixel |
|
|
Magalasi |
Kutalika kwambiri |
4.7mm ~ 141mm, 30x Optical Zoom |
|
Maonekedwe |
F1.5 ~ F4.0 |
|
|
Gawo la malingaliro |
H: 60.5 ° ~ 2.3 ° |
|
|
Tsekani mtunda wautali |
2m ~ 3m (mmodzi ~ Tele) |
|
|
Kuthamanga kwa zoom |
Pafupifupi. 4s (owoneka bwino kwambiri ~ Tele) |
|
|
Kanema |
Kalembedwe |
HD - TVI, HDCVI, Ahd, CVBS 4 mu 1 (OSD Menyu) |
|
Zopangidwa |
IVP - P zojambulajambula |
|
|
Kuvomeleza |
TVI / CVI / Ahd: 25 / 30fps @ 220 × 1080) CBVS: 700tvl |
|
|
Menyu osd |
Pa / kuchokera (zilembo 11 * 20) |
|
|
Kuwunikira kochepera |
Utoto: 0.01Llux / F1.5; B / W: 0.001lux / F1.5 |
|
|
Usana / usiku |
ICR (auto, utoto, wakuda, wakunja) |
|
|
S / n ratio |
≥0db |
|
|
Kuchepetsa kwa 2D |
Thandiza |
|
|
Kuchepetsa kwa 3D |
Kuthandizira (Kwambiri / Pakati / Otsika) |
|
|
Mawonekedwe oyang'ana |
Auto, Manual, Semi Auto, |
|
|
Makina owonekera |
Auto, buku |
|
|
Kuthamanga kuthamanga |
Auto, 1/50 (1/60) ~ 1 / 100,000 |
|
|
Chepetsa pang'onopang'ono |
X2 |
|
|
Oyera oyera |
Auto, Inoor, Kunja, Stealo Track, Kukankha |
|
|
Beli la blc |
Pa / kunyamuka |
|
|
Auto ipeza ulamuliro |
Auto, buku |
|
|
Masking Overking |
Pa / Off, Max. 8 madera |
|
|
Opelewera |
Osinthika |
|
|
Kusiyana |
Osinthika |
|
|
Kuipitsa |
Thandiza |
|
|
Kaliwo |
Pa / kunyamuka, kuzungulira, Flip |
|
|
Chithunzi chimazizira |
Pa / kunyamuka |
|
|
Kaonekedwe |
6PIN, 2PIN 1.25mm Sercial Bamu, yokhala ndi bolodi |
|
|
Protacol yolumikizirana |
Sony Vica, pelco d, UTC (9.6kbps 10bit) |
|
|
Zogwirira Ntchito |
- 30 ° C ~ 60 ° C / 20% mpaka 80% rh |
|
|
Malo osungira |
- 40 - 40 ° C ~ + 7 ° C / 20% mpaka 95% rh |
|
|
Magetsi |
DC 12V / 90MA ± 6MA (DC Stud: 9 ~ 16V) |
|
|
Kumwa mphamvu |
Max. 4w |
|
|

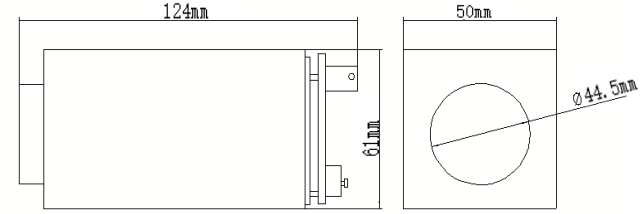

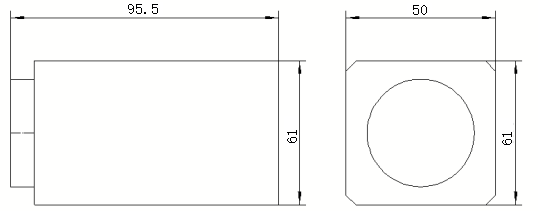

Makulidwe (L * W * H) |
95.mm *m 50mm * 61mm (124mm * 51mm * 51mm * 56mm ndi bolodi yamilamu) |
|
|
Kulemera |
250g (268g ndi bolodi ya mchira) |
|
