2MP 20x AI ISP Based Zoom Network and MIPI digital Dual Output Camera Module

2MP 20x AI II ISP YOLETSA PETETEBETE NDI MPI Digital Eall Earmation Momera

> 1 / 2.8 "Sony Starvis 2 CMOS sensor.

> Mphamvu 20x Optical Zoom (5.4 ~ 108mm).

> Max. 2mp (1920 × 1080).

> Kuthandizira ntchito zosiyanasiyana za IV.

> Chithandizo cha elegntic.

> Thandizani chidziwitso chambiri cha OSD chimakhala pa intaneti.

> Thandizo MIPI Digital VideoSfichronomly.

> Hidilicon New Heriko AI Priotion ISP, kubwezeretsa dziko lenileni la utoto.


    Kutsitsi

    Tsatanetsatane wazogulitsa

    M'mbali

    Mtundu

    SG - Zcm2020nMil

    Matenda

    Chithunzi

    1 / 2.8 "Sony Starvis 2 Yopita Kumapeto kwa CMOS

    Pixel

    Pafupifupi. 2.18 megapixel

    Magalasi

    Kutalika kwambiri

    5.4mm ~ 108mm, 20x Optical Zoom

    Maonekedwe

    F1.78 ~ F2.86

    Gawo la malingaliro

    H: 54.5 ° ~ 2.95 °, v: 32.3 ° °, 41.2 ° ~ 3.39 °

    Tsekani mtunda wautali

    0.1m ~ 1.5m (mmodzi ~ Tele)

    Kuthamanga kwa zoom

    <4s (pafupifupi ~ tele)

    Mtunda wa dori

    (Munthu)

    Fufuza

    Ona

    Zindikira

    Dziwa

    1,49m

    591m

    298m

    149M

    Vidiyo ya network

    Kuphatikizidwa

    H.265 / H.264 / H.264h / H.264B / MJPEG

    Kuthana ndi kuthekera

    Mitsinje itatu

    Kuvomeleza

    Mtsinje waukulu: 50 / 60fps × 1080; 50 / 60fpps @ 780 × 720
    Sub - mitsinje1: 60FS @ 704 × 480; 60fpps @ 352 × 240;

    50fps @ 704 × 576; 50fps @ 352 × 288

    Sub - mitsinje1: 50 / 60fps @ 780 × 720; 60fpps @ 704 × 480;

    50fps @ 704 × 576

    Makanema pang'ono

    32Kbps ~ 16mbaps

    Kudzimvetsera

    AAC / mp2l2

    Video Video

    50Z: 50fps @mp (1920 × 1080)

    60hz: 60fsp @mp (1920 × 1080)

    Mau netiweki

    Pulogalamu ya Network

    Ipv4, IPV6, HTTP, HTTP, UDP, RTP, RTP, DTP, FTP, NSPT, 802.1X, Bojar

    Opasi

    Onvif, HTTP API, SDK, GB28181

    Tsamba lawebusayiti

    Mwachitsanzo, m'mphepete, Firefox, Chrome

    Wogwilitsira nchito

    Kufikira ogwiritsa ntchito 20, 2 Level: Oyang'anira, Wogwiritsa Ntchito

    Kusunga

    Micro sd / sdhc / sdxc khadi (mpaka 1Tb) m'mphepete, ftp, nas

    Kanjira

    Thandiza

    Firmware Sinthani

    Kokha kumatha kukweza doko la firmware kudzera pa intaneti.

    Zochitika Zambiri

    Kuyenda, tamper, khadi la SD, netiweki

    Ivs

    Tripwere, Kuyang'ana Manja Mangani, kulowererapo, chinthu chosiyidwa, chosasunthika - kuphatikizika kwa magalimoto, zingwe, zowunikira.

    Kusiyanitsa

    Anthu / galimoto

    S / n ratio

    ≥25db

    Kuwunikira kochepera

    Utoto: 0.0005lux / F1.78; B / W: 0.0001lux / F1.78

    Kuchepetsa phokoso

    2d / 3d / AI kuchepetsa

    Makina owonekera

    Auto, Cholinga Choyambirira, Cholinga Chofunika Kwambiri, Pezani Chofunika Kwambiri, Manunkhidwe

    Kubwezera

    Thandiza

    Kuthamanga kuthamanga

    1/1 ~ 1 / 30000s

    Beli la blc

    Thandiza

    Hlc

    Thandiza

    Wdr

    Thandiza

    Oyera oyera

    Auto, Manja, Indoor, Kunja, Nyali Yakutali, Nyali Yamsewu, Chibadwa

    Usana / usiku

    ICR (auto / buku)

    Mawonekedwe oyang'ana

    Auto, Manual, Semi Auto, Flait Auto, Freit Semi Auto, imodzi ikukankha AF

    Imelo

    Thandiza

    Kutentha kwa kuchepetsa

    Thandiza

    Flip

    Thandiza

    Eis

    Thandiza

    Digito zoom

    16x

    Kuwongolera zakunja

    Ttl

    Kaonekedwe

    4Pin Ethernet doko, 6pin Mphamvu & Uart doko, 5Pin Audio Port.

    30PIIN MPI

    Protacol yolumikizirana

    Sony visca, pelco d / p

    Zogwirira Ntchito

    - 30 ° C ~ 60 ° C / 20% mpaka 80% rh

    Malo osungira

    - 40 - 40 ° C ~ + 7 ° C / 20% mpaka 95% rh

    Magetsi

    DC 12V

    Kumwa mphamvu

    Mphamvu Yokhazikika: 2.5W, Masewera Ogwiritsa Ntchito Masewera: 3.6w

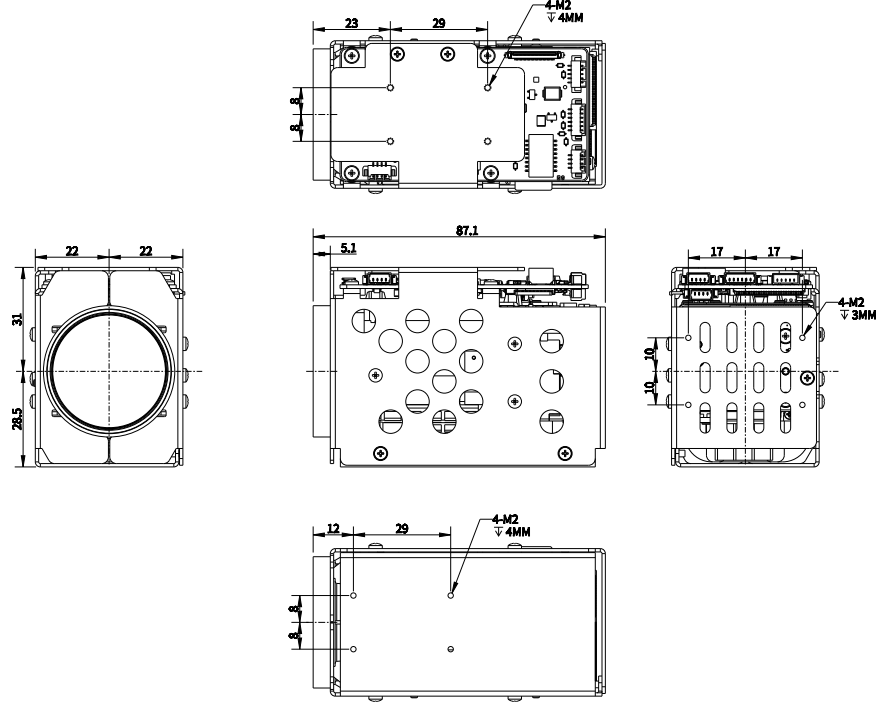

    Makulidwe (L * W * H)

    87.1mm * 44mm * 59.5mm

    Kulemera

    230g
