2000m mtunda wa 1550nm aftrared laser akuwunika
Mtundu | SG -IR1550-2K |
| AmphamvuKutalika | ≥2000m |
| Mmalo | Arde homogenization laser |
| Pukhuta | 1550nm ±5nm |
| Mphamvu | <70W |
| Mphamvu ya laser | 10w (2 * 5w) |
| Mphamvu yowala | ≥8W |
| Kuyatsa ngodya | 0,8 ° ~ 70 ° (Kupitiliza Zoom) |
| Diameter | φ19m (@ 0.8 ° @000m) |
| Znthawi | ≤3s (Pafupi mpaka) |
| Kuyambitsa Nthawi | <10s |
| UlusiCmtovuDeameter | 400μm |
| Mlingo wa chitetezo | Kalasi iv (Fda, Iec 60825) |
| Mtunda wa Chitetezo cha Laser | 15m (ngodya zapamwamba) |
| Mawonekedwe olumikizirana | Rs - 485, TTL232 |
| Protacol yolumikizirana | Pelco - D (9600bps) |
| Njira yogwirira ntchito | Continsies |
| Moyo Wautumiki | 20,000h |
| Mphamvu | DC24V ± 10%, 2.6 ± 0.3a |
| KuyendetsaKutentha | - 35 ° C~+ 55 ° C |
| SchikhadeTeklamu | - 40 ° C~+ 85 ° C |

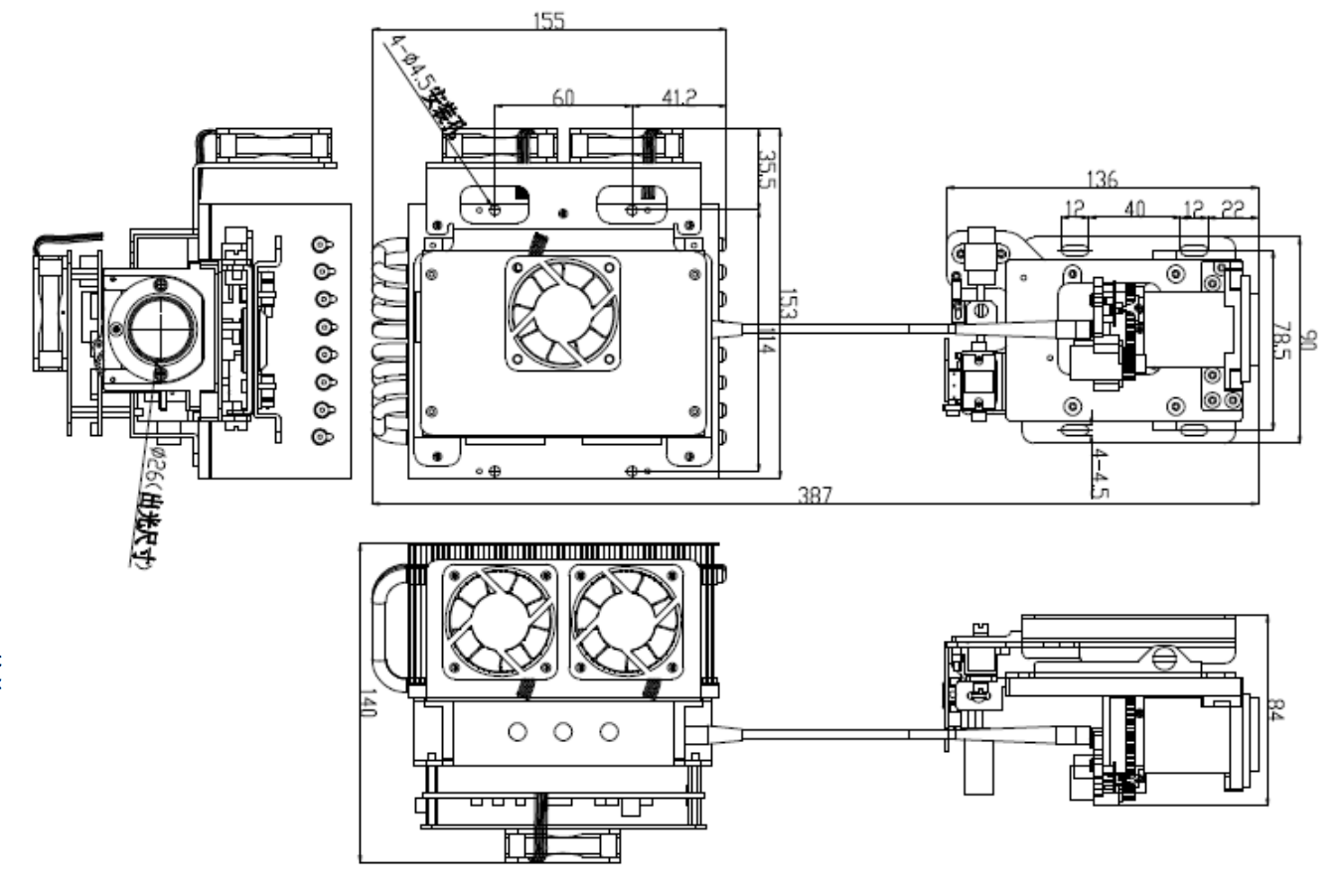

| M'mbali | 387mx153mmx140mm |
| Kulemera | 3.5kg |
| Kusintha kwamagetsi | |
| AMalangizo Opanda Dzuwa | Left / kumanja: ± 3 °, mmwamba / pansi: ± 3 ° |
| Kulondola Kusintha | 0.01 ° |
