1280x1024 Thermal Network Momera yokhala ndi 30 ~ 180mm (30 ~ 120mm) mandala oyendetsa magalimoto

Mtundu

SG - TCM06N2 -M30180

SG - TCM06N2 -M30120

Matenda

Chithunzi

Vox yosagwirizana

Kuvomeleza

1280 × 1024

Mlingo

50Hz

Pixel phula

12.μm

Mizere yoyeserera

8 ~ 14μm

Nett

≤35mk @ 25 ° C # 1.0

Magalasi

Chokutila

DLC

Kutalika kwambiri

30 ~ 180mm

30 ~ 120mm

Mtundu wa mandala

Koyendetsedwa

Koyendetsedwa

Zoom Optical

6x

4x

Digito zoom

8x

8x

Mtengo wofunika

F1.0 ~ F1.4

F1.0 ~ F1.4

Fov

28.72 ° × 23.15 ° ~ 4.89 ° × 3.91 °

28.72 ° × 23.15 ° × 832 ° × 5.86 °

Kanema

Kuphatikizidwa

H.265 / H.264 / H.264h / H.264B / MJPEG

Audio Kukakamiza

AAC / mp2l2

Chithunzi

Jpeg

Kuvomeleza

Mtsinje waukulu: 50fps @ 880 × 1024, 1280 × 720, 704 × 676, 704 × 484 × 484)
Sub - Mitsinje1 / 2: 50fps @ 576, 704 × 482, 382 × 288, 352

Makanema pang'ono

4kbps ~ 40mbps

Mau netiweki

Pulogalamu ya Network

Ipv4, IPV6, HTTP, HTTP, UDP, RTP, RTP, DTP, FTP, NSPT, 802.1X, Bojar

Opasi

Onvif, HTTP API, SDK, GB28181

Chitetezo cha netiweki

Kutsimikizika kwa Ogwiritsa, IP / Mac Kusefa, HTTPS Sordermption, IEEEE 802.1X Intaneti

Tsamba lawebusayiti

Mwachitsanzo, m'mphepete, Firefox, Chrome

Wogwilitsira nchito

Kufikira ogwiritsa ntchito 20, 2 Level: Oyang'anira, Wogwiritsa Ntchito

Kusunga

Micro sd / sdhc / sdxc khadi (mpaka 1Tb) m'mphepete, ftp, nas

Kanjira

Thandiza

Nzeru

Chitetezo cha Perimeter

Tripware, mitanda yokhala ndi mpanda, wolowerera

Kusanthula kwachikhalidwe

Chinthu chosiyidwa, kuchotsedwa kwa chinthu, kusala - Kusasunthika, Kuzindikira Khadi, Kuzindikira Patsa

Zochitika

Kuzindikira kwa Mosungunuka, Video Yosachedwa, Kusintha Kosintha, Kuzindikira Kwazolowera, Network Stonening, IP Ming'alu, Kufikira Komaly, Kusungira Anthoya

Kuzindikira Kwamoto

Thandiza

Kaonekedwe

Ethernet

4Pin Ethernet Port, 10m / 100m Nokha - Mankhwala

Alamu mkati / kunja

1/1

Audio mu / kunja

1/1

Kuwongolera mawonekedwe

1X TTL 3.3V (visca protocol),

1X rs485 (pelco protocol) (ttl 3.3V posankha)

Zotulutsa za kanema

Mau netiweki

Mtundu wa Pseudo

Zoyera zoyera, zotentha zakuda, zofiirira, zofiira, ndi zina 20

Mawonekedwe oyang'ana

Auto / Buku / Buku / Limodzi Limodzi

Ffc mode

Auto / Buku

Kukhazikika

Kuwala, Kusiyana, Kusiyanitsa, ndi Kuchepetsa Kwa Nthawi Yakanthawi

Eis

Thandiza

Osd

Thandiza

Flip

Thandiza

Kaliwo

Thandiza

Magetsi

DC 12V, 1A

Kugwiritsa ntchito mphamvu

3.8w

Peak Pomwana

7.3w

7.1w

Zogwirira Ntchito

- 30 ° C ~ 60 ° C / 20% mpaka 80% rh

Malo osungira

- 40 - 40 ° C ~ + 7 ° C / 20% mpaka 95% rh

Mlingo wa 1 wotetezera

Ip67

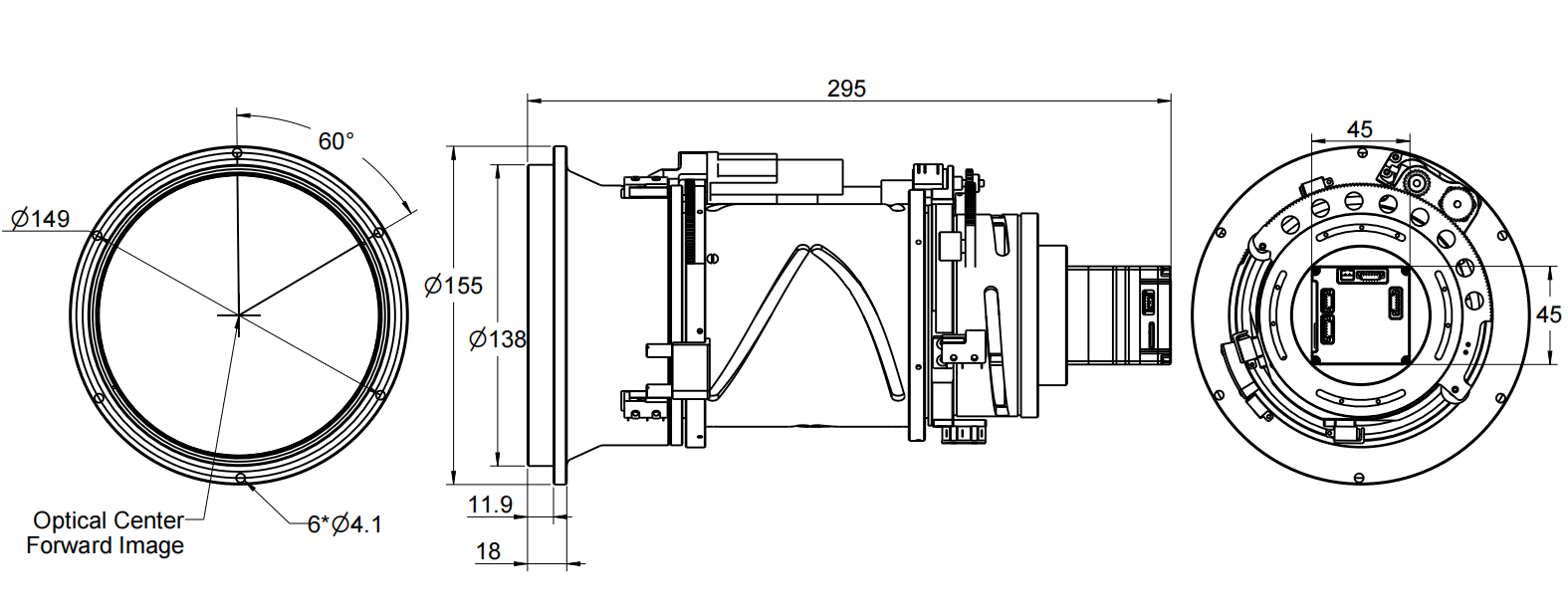

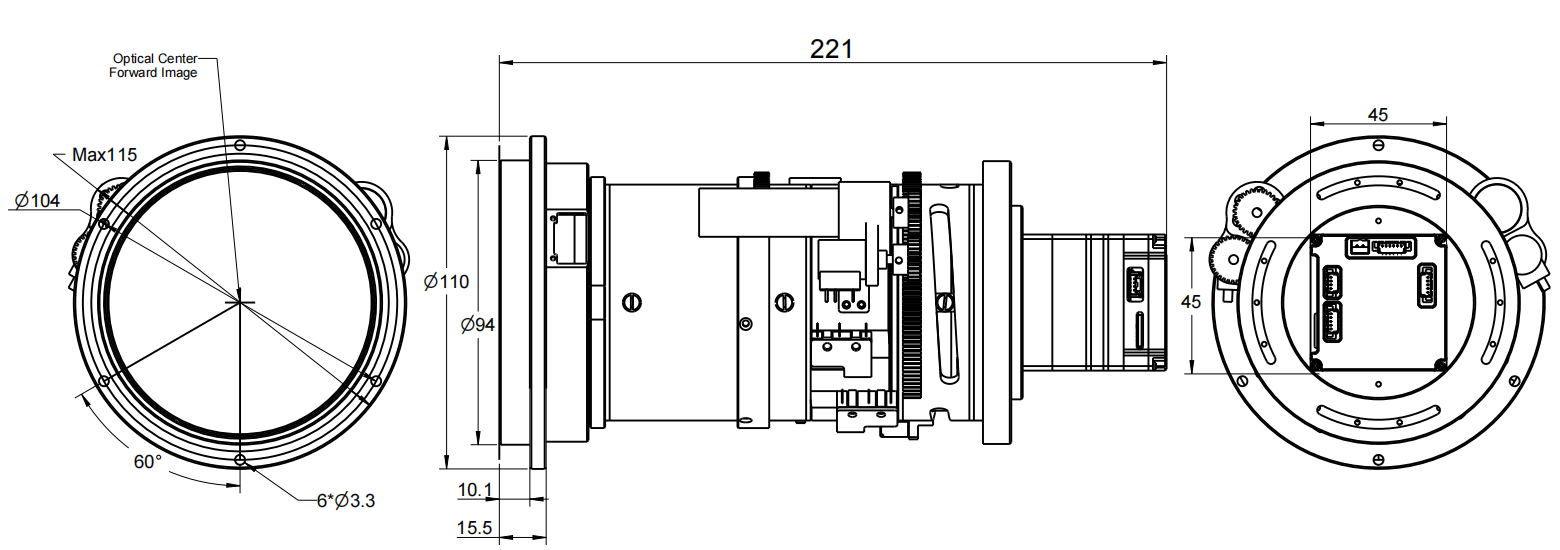

Makulidwe (L * W * H)

Φ155 * 295mm

Φ110 * 221mm (Flange)

Φ120 * 221mm (max.

Kulemera

Pafupifupi. 3.2kg (kuphatikizapo mandala)

Pafupifupi. 1.69kg (kuphatikizapo mandala)
